How do I add Total columns and rows to my Advanced Lot & how can I use formulae to do calculations in my lot? (Optional)

How do I add Total columns and rows to my Advanced Lot & how can I use formulae to do calculations in my lot? (Optional)

What is the issue you're facing?

I would like to know how I can add total columns and rows to my Advanced Lot and how I can use formulae to do calculations within my lot

Solution

When building an advanced lot table, there is the ability to include total columns and rows. Within these total components you can then include calculations and formulae.

To add a total column or row click onto either the ‘Add Line Item Row’ or ‘Add Component Colum’ then a drop down will appear, giving you the option to add in a total (See image 1 & 2 below). You will then be prompted to give the new column or row a name, you can also decide if you want this column to be hidden from participants.

Image 1: showing where to add a total column.


Image 2: showing where to add a total row.

When you have added a total column or row you will see that they are highlighted in green (See image 3 below).

Image 3: showing the addition of a total column and total row.

As default the total column cells and total row cells will make an addition of any price cells. You can however change and expand on the formulae. To change the formula in either total column or total rows click into one of the green total columns or total rows cells (Enter info button). You will now be able to build a complex formula similar to how you would build formulas within Excel (See image 4).

When you are happy with the formula you can apply the formula to all of the total column or total row cells by selecting the ‘Apply to entire column/row’ to the right above the formula box. This will then duplicate the formula and apply to all cells within the total column or row.

You can also decide whether this is going to be a ranked field, whether the rank will be visible to participants, and if you want this column total or row total to include the Lot Total. See knowledge base article ‘Lot totals and line items totals’ for further information on Lot totals.

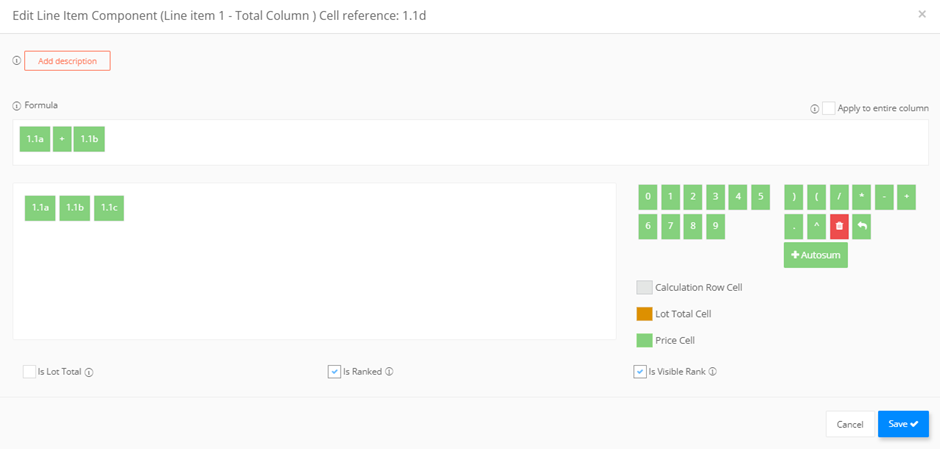

Image 4: Showing the formula builder when in a total row or total column.

If you click into the name of the total row or total column you can rename the column and row, decide if you want the row or column ranked, if the ranked is visible to participants and decide if you want to hide the entire column or row from participants. See image 5 below.


Image 5: Showing the options available when clicking on a total column header.

Tip: Before hiding a column or row from participants consider if participants will be confused by not being able to see the information in the column or row.
